Key benefits
- Tailored for specific product formats
Supports medical carriers with precise placement and protection using silicone sheets or paper. - Cleanroom-ready design
Built with FDA and EU-compliant materials, GMP compliant for ISO class 7 environments. All surfaces are easy to clean and designed to minimize dust accumulation. - Compact and mobile

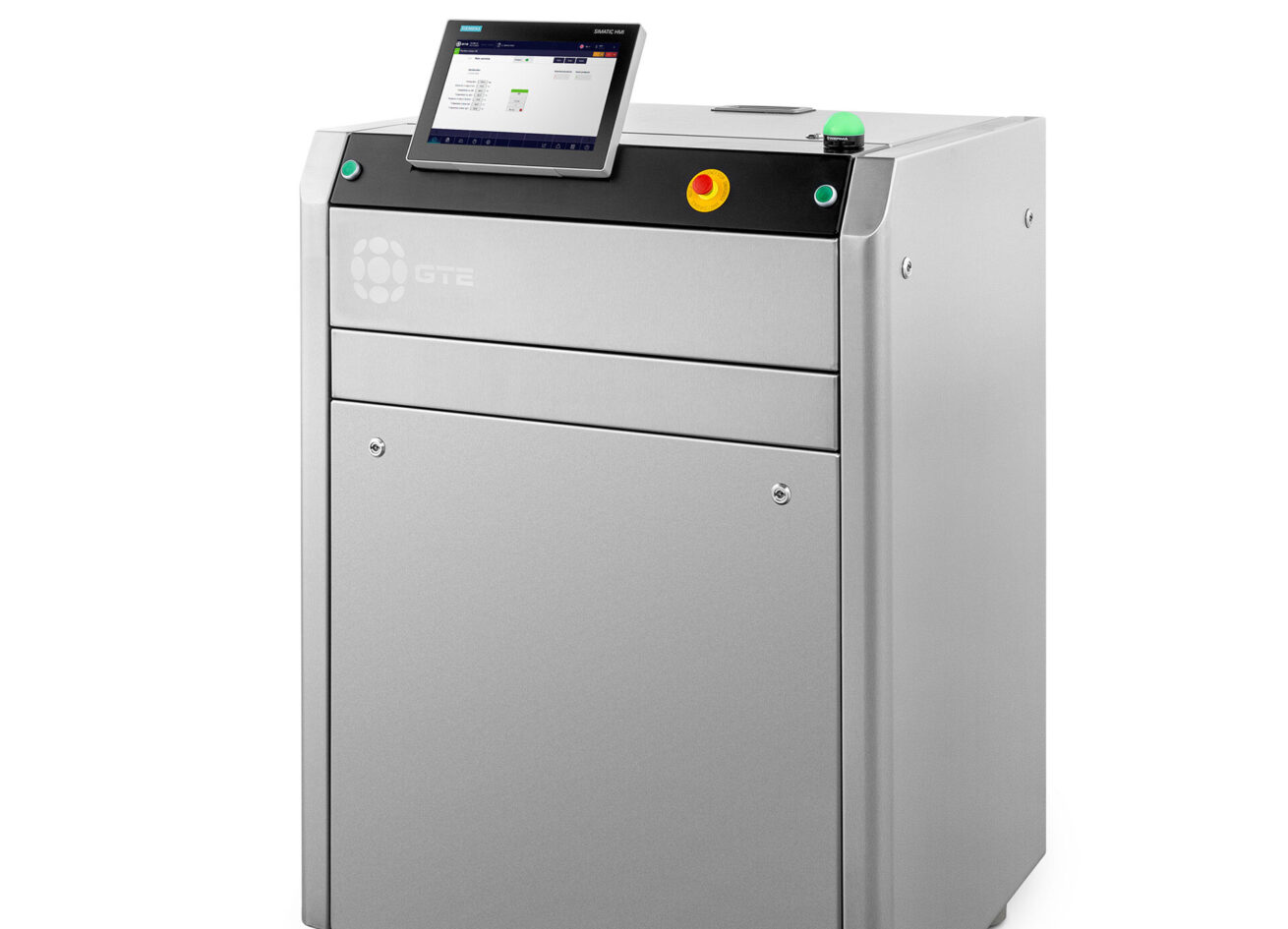

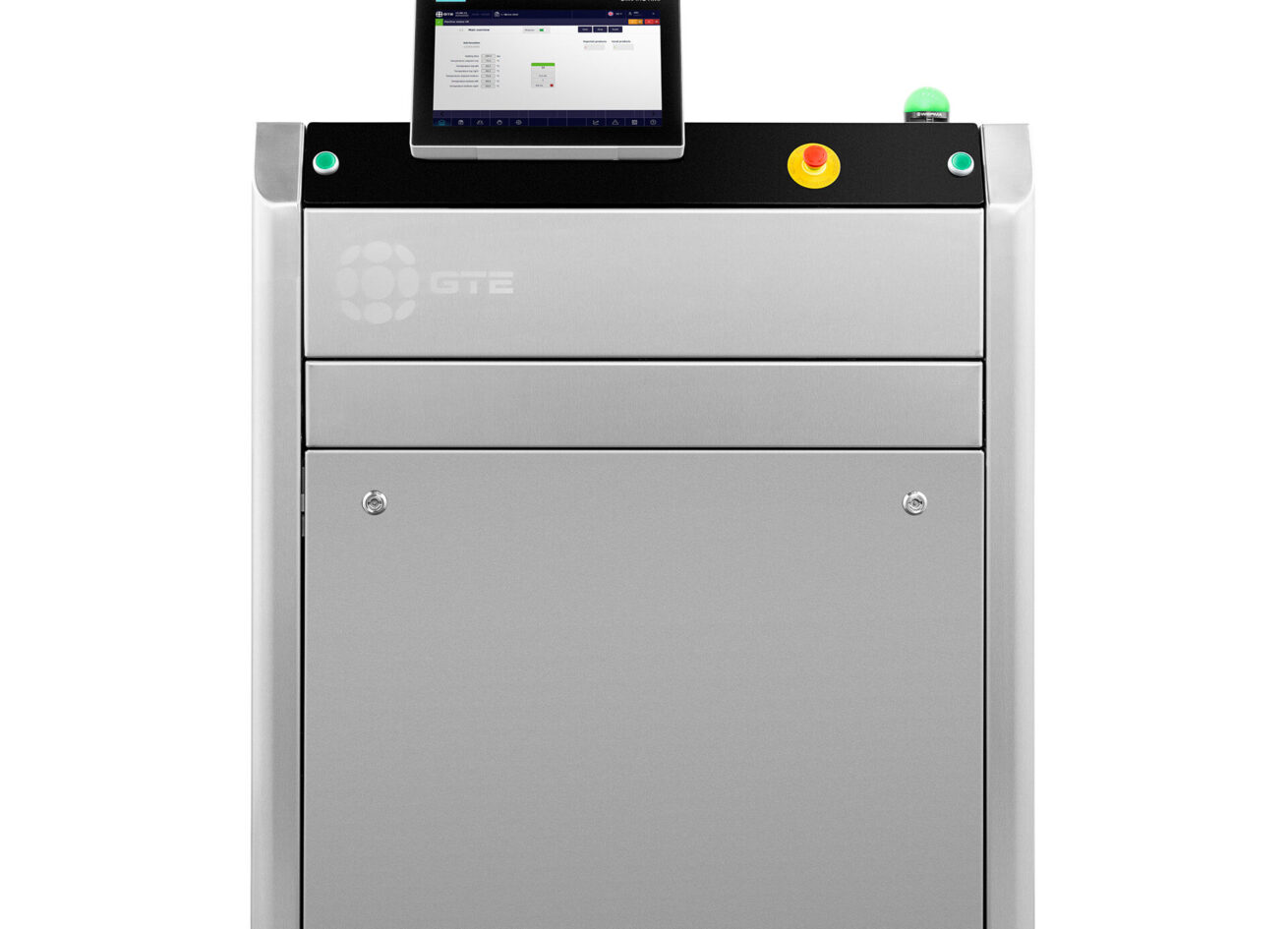

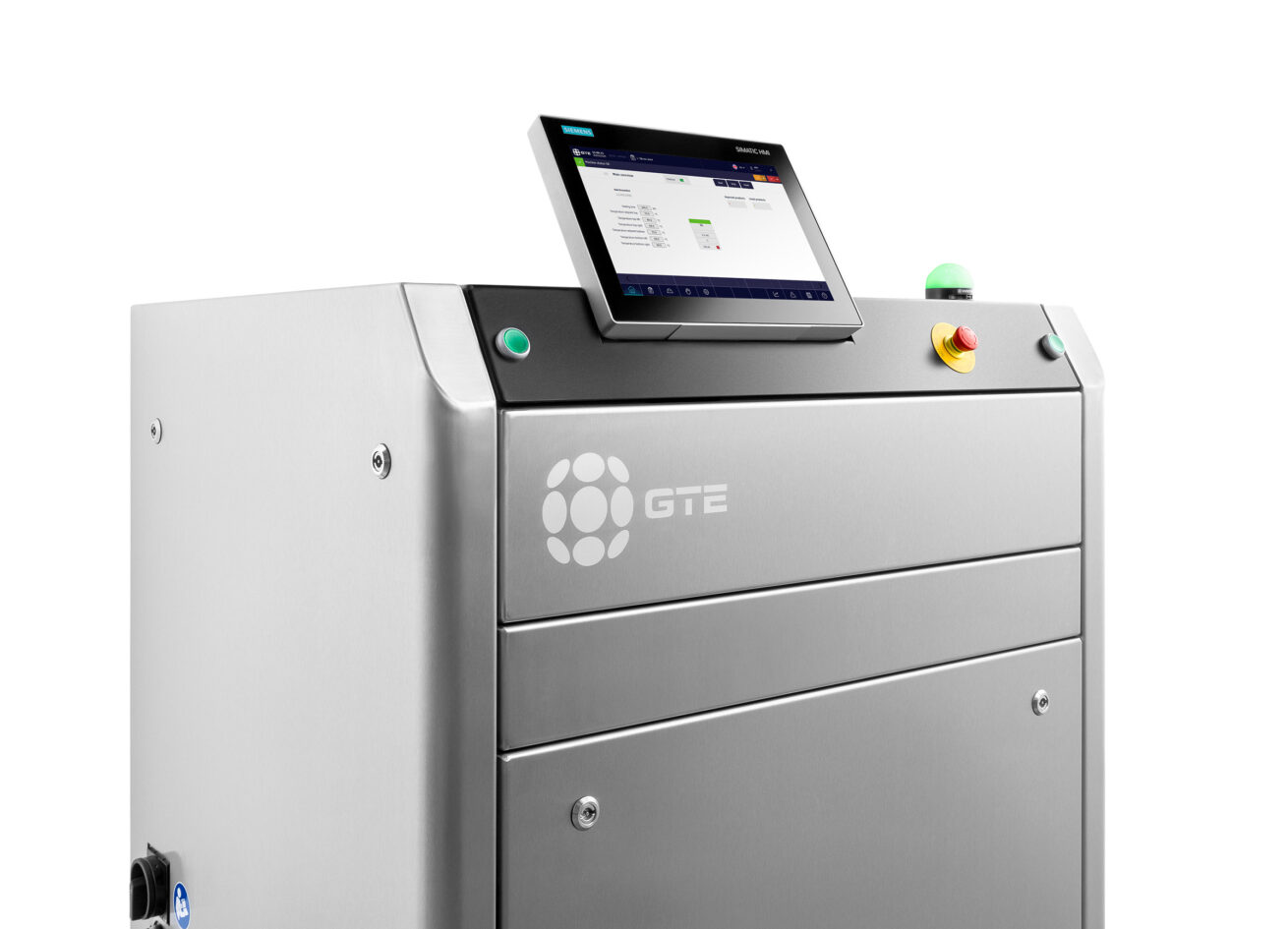

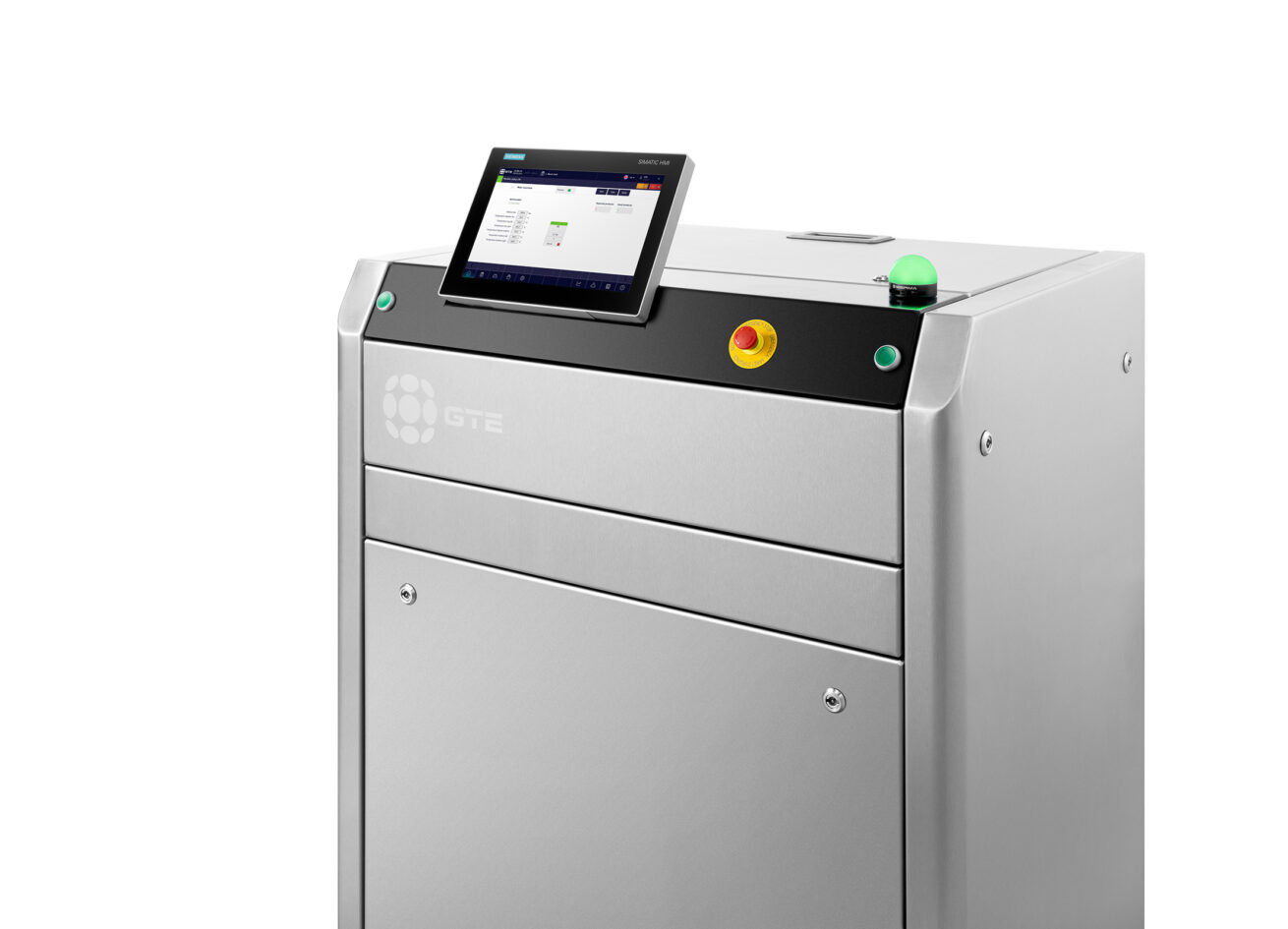

Stainless steel frame with castor wheels allows easy integration into production lines without compromising functionality.
Advanced drawer system

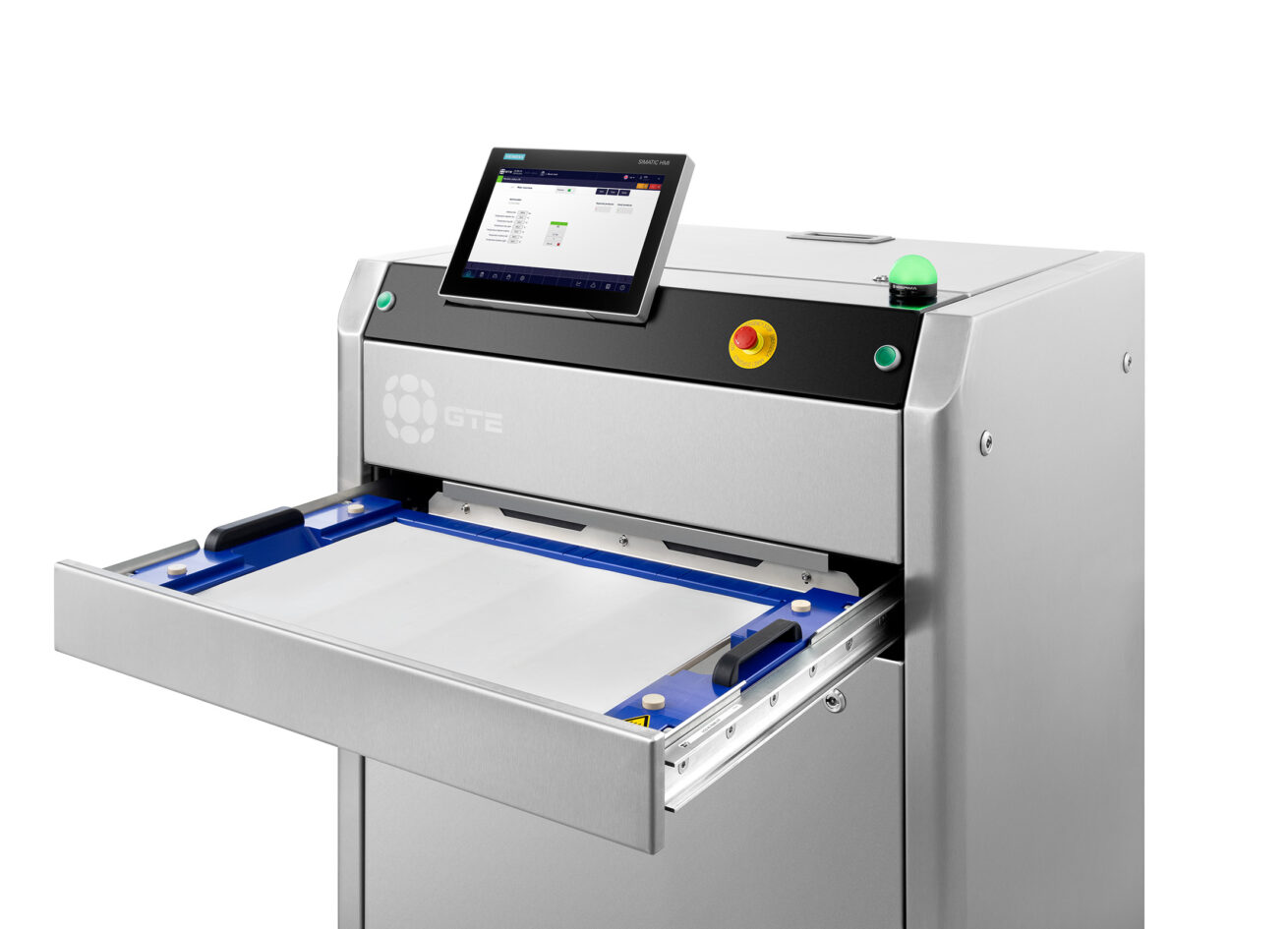

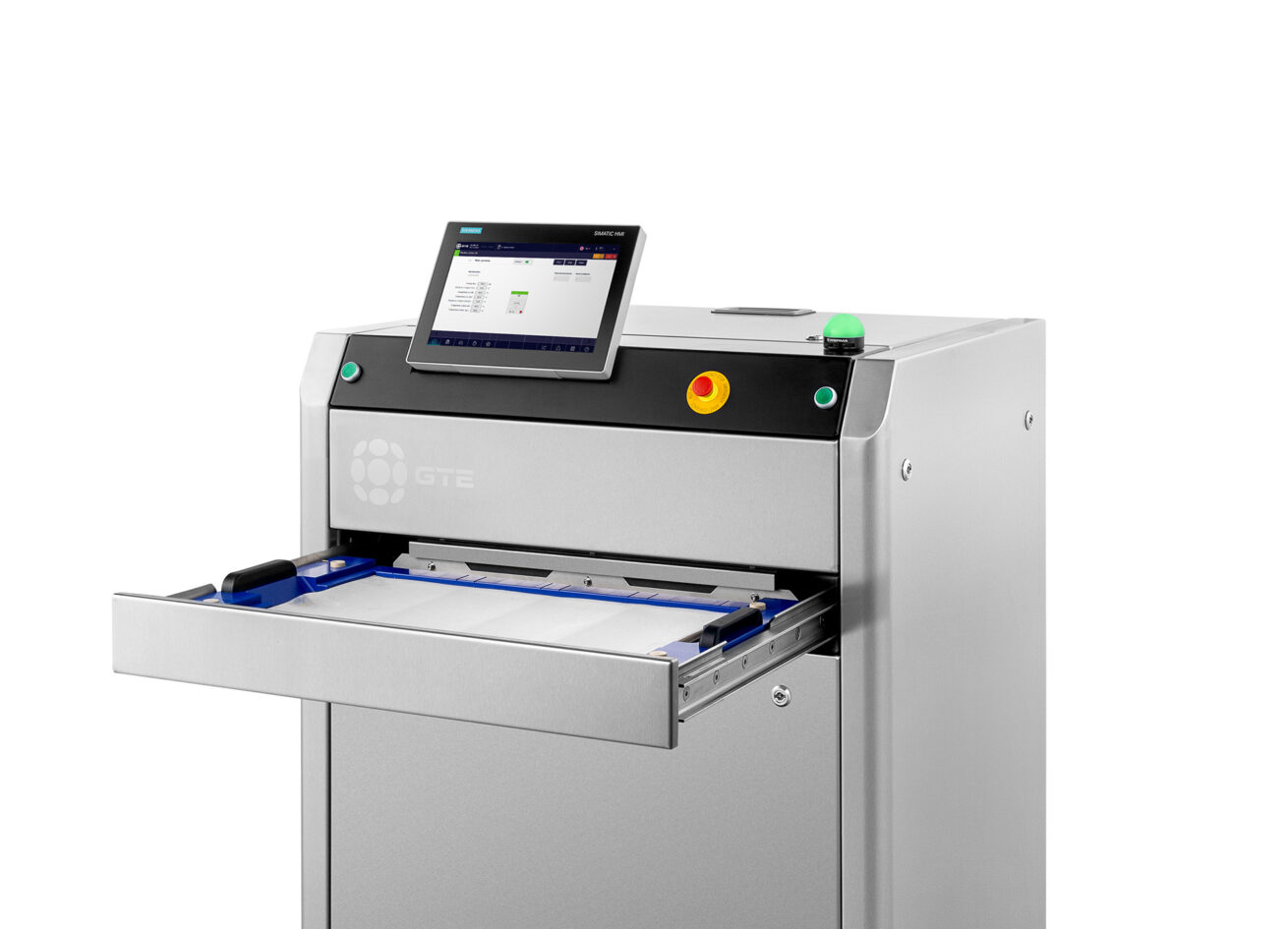

The integrated drawer functioning as a product holder is powered by a stepper motor, ensuring smooth and reliable motion. Key features include:
- Poka-yoke positioning
Four guide bushings, one uniquely placed, prevent incorrect drawer installation. - Removable tray
Equipped with handles for easy removal and preparation. Includes a grid for patch placement and markings for accurate positioning. - Thermal safety
The drawer’s width and isolator material minimize contact with heated components, enhancing operator safety.
Get more information
Wondering how the Machine could be useful for your organisation? Request more information using the form below.
"*" indicates required fields
Our customers
Why choose GTE Engineering?
GTE specialises in designing and producing tailor-made machines for the medical and pharmaceutical industry. Based on your specific needs, we’ll work together on the solutions to the issues you’ve run into.
Curious about what we could do for you?
Designed for performance
Precision heating system
The heating mechanism features a stationary top plate and a motor-driven bottom plate. Highlights include:
- Uniform heating
Mica heating elements ensure even heat distribution across the patch area. - Dual PID temperature control
With sensors and independent PID loops maintain temperature within ±1 °C of the setpoint, with minimal variation across the heated plate. - Robust construction
Includes an cover plate, insulation, and stainless steel base plate for durability and thermal stability. - Fast heat-up time
Reaches stable operating temperature within 45 minutes. Timer to pre-heat is included.
Mechanical and compliance highlights
- Designed for continuous operation
- Meets EU safety standards: CE marking, en ISO12100 risk assessment, en ISO 13849-1 safety classification
- Maintenance-friendly: preventive maintenance and calibration require less than 2 days per year
Applications
Perfect for industries requiring:
- Medical-grade patch fixation
- Cleanroom-compatible thermal processing
- High-precision, small-footprint equipment
